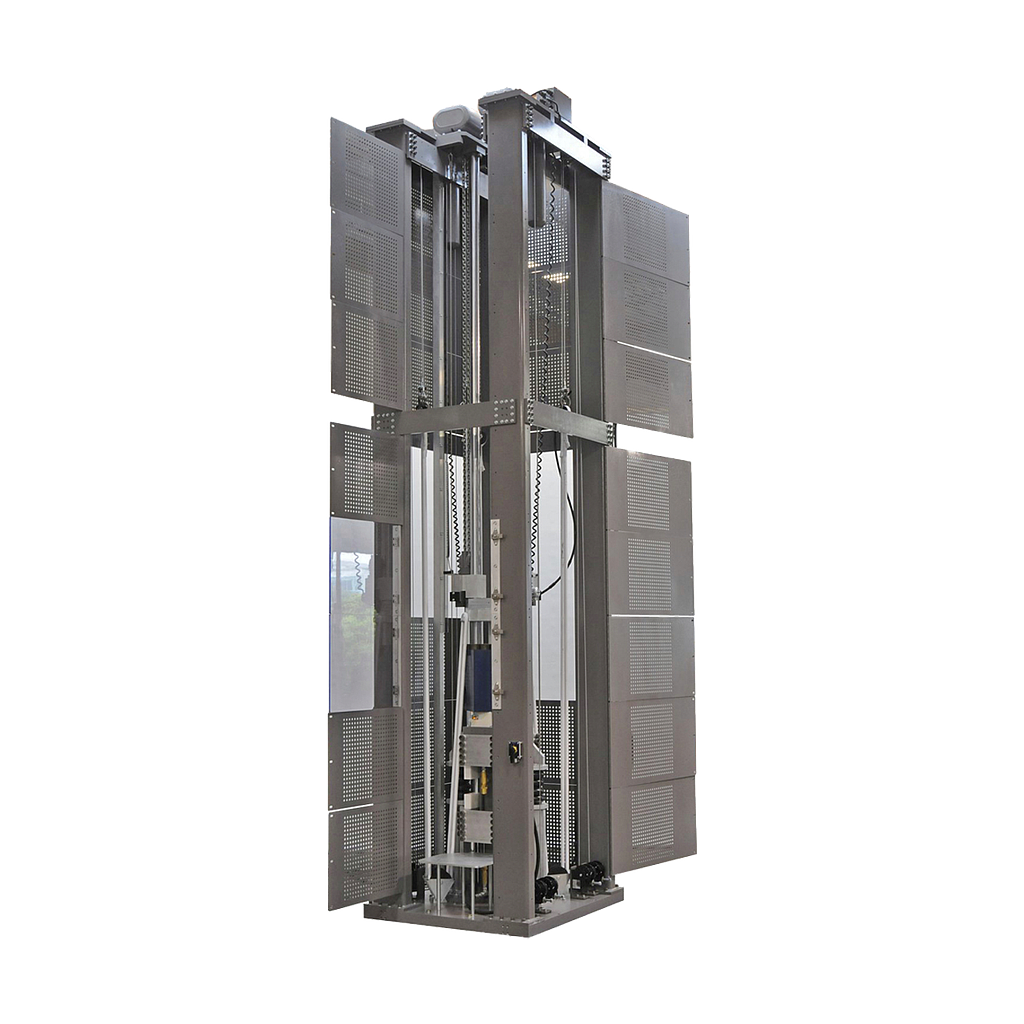

Lansmont HSX20 High speed shock test systems (1000g)

TABLE DIMENSIONS

Front Face : 8.0 in. (20.3 cm)

Top Face : 8.0 in. (20.3 cm)

TEST CAPABILITIES

Max. Acceleration:  10,000g

Min. Pulse Duration : 0.2 msec (half sine)

Max. Velocity Change : 75 – 150 ft./sec (22.9 – 45.7 m/sec)

Pulse Waveforms : Half Sine; Terminal Peak Sawtooth +Trapezoidal (with Optional Programmers )

MAXIMUM PAYLOAD : 250 lbs. (113 kg)

DIMENSIONS

Height : 115 – 175 in. (292 – 445 cm)

Side to Side : 36 in. (91.4 cm)

Front to Back : 53.7 in. (136.4 cm)

POWER REQUIREMENTS

Machine (hoists) : 200 – 240 VAC/3Φ/50 – 60 Hz: 10 amp min.; 380 – 480 VAC/3Φ/50 – 60 Hz: 5 amp min.

Machine (winch) : 100 – 120 VAC/1Φ/50 – 60 Hz: 30 amp min.

Controller:  100 – 120 VAC/1Φ/50 – 60 Hz: 1 amp min.; 200 – 240 VAC/1Φ/50 – 60 Hz: 1 amp min.

PNEUMATIC REQUIREMENTS

Plant Air:  90 psi (6.2 bar)
