Technical parameters
S21 optical sensor
Transmission rangeDC...10 Mbps
Optical fibre connector2.2 mm Ø
Supply voltage(3-5) V
Current input10 mA
SGZ 21 burst Generator
Pulse parameter
Rise timeca. 2 ns
Tail timeca. 10 ns
Peak valuesca. 0...1500 V
Optical input
Optical fiber2.2 mm
Max. frequency5 MHz
Min. pulse width100 ns
Supply voltage12 V / 200 mA
Sizes (L x W x H)(154 x 100 x 62) mm
Scope of delivery
1xSGZ 21, Burst Generator
1xS21, Optical Sensor (10 Mbps)
1xBS 02, Magnetic Field Source
1xBS 04DB, Magnetic Field Source
1xBS 05D, Magnetic Field Source
1xBS 05DU, Magnetic Field Source
1xES 00, E-Field Source
1xES 01, E-Field Source
1xES 02, E-Field Source
1xES 05D, E-Field Source
1xES 08D, E-Field Source
1xMS 02, Magnetic Field Probe
1xE1 acc, Accessories
1xNT FRI EU, Power Supply Unit
1xE1 case, System Case
1xE1 m, E1 Set User Manual
Short description

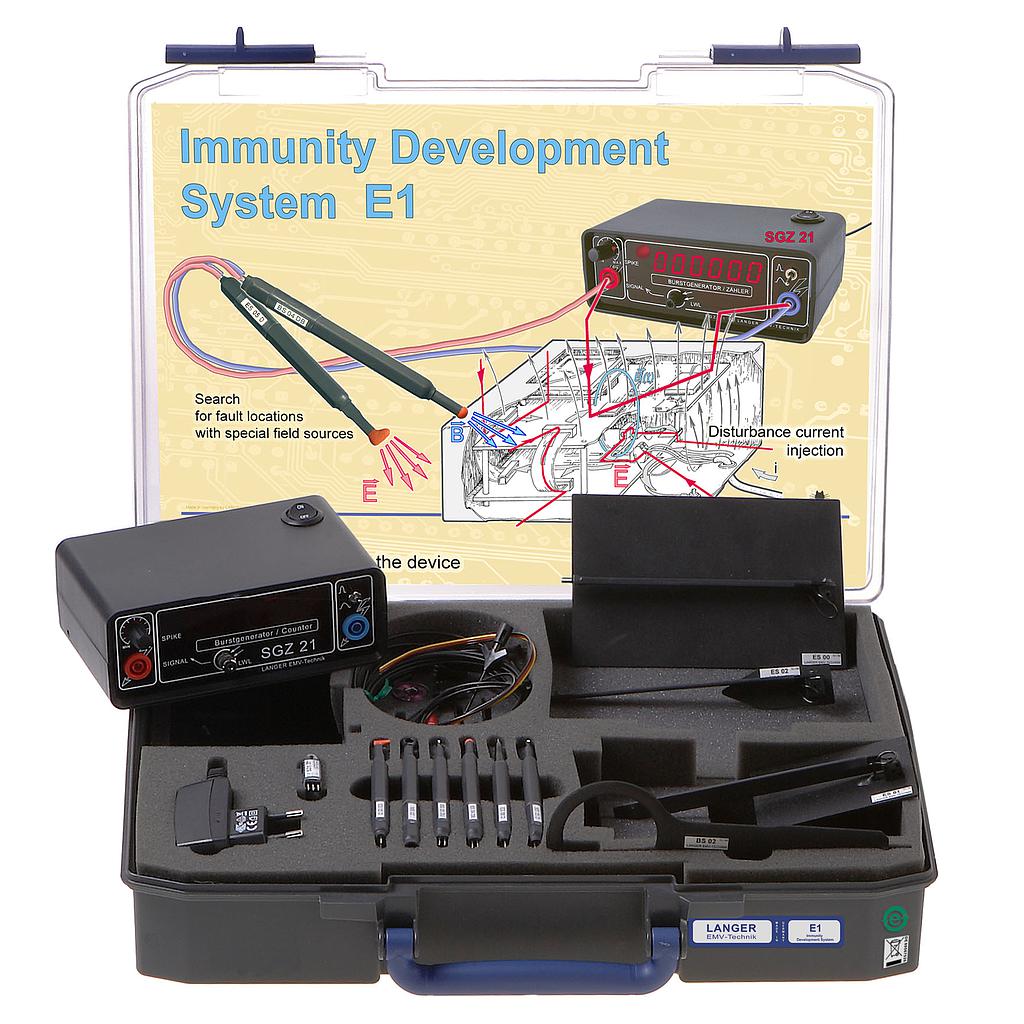

The E1 is a set of EMC tools used for EMI suppression in printed circuit boards during the development phase. The developer can use the E1 set to quickly identify the causes of burst and ESD interference. This allows the developer to design suitable measures to solve the causes of the interference. It can also be used to test the effectiveness of the measures taken. The E1 test set-up is small and fits easily on a developer’s desk. The E1 set user manual describes EMC mechanisms and provides detailed descriptions of basic measuring strategies for interference suppression in printed circuit boards. The E1 set includes a generator to generate burst and ESD disturbances.
