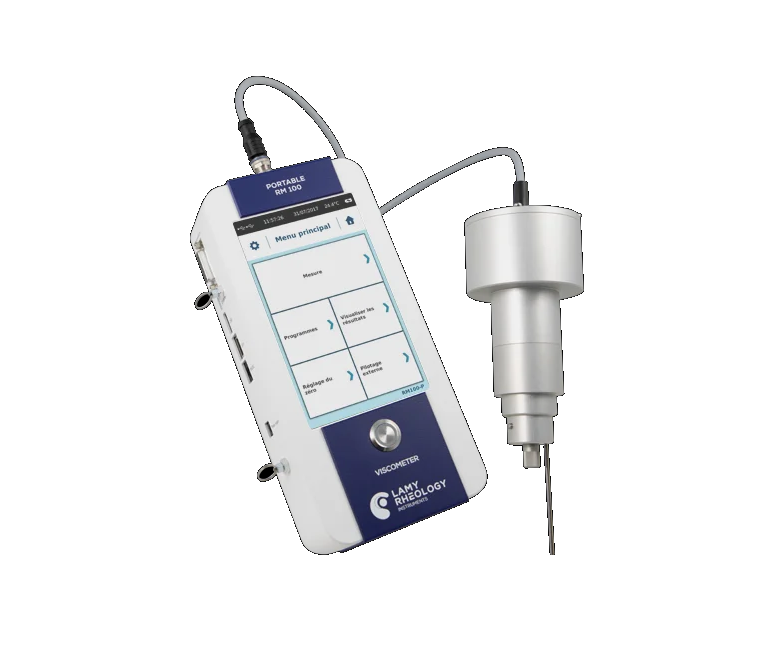

Type of instrument : Rotating springless viscometer with 7’’ Touch screen
Viscosity range (mPa.s): 200to 240M
Rotation speeds : Unlimited number of speeds between 0.3 and 1500 rpm
Torque range : From 0.05 to 30 mNm
Temperature : The Portable RM 100 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C
Accuracy : +/- 1 % of the full scale
Repeatability : +/- 0.2 %
Display : Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time – Temperature
Compatible accessories :
Standard or rack stand
HELIPRO stand
Zebra printer
Small volume package
Small volumes package
THERMOCELL package
Bayonet spindle rack
Barcode reader with stand and cable
Touch screen protector
Viscosity standards oil
RheoTex software
Security and confidentiality : An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
Languages : French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese/Ukrainian
Compatible measuring systems : MS DIN, MS RV/LV, MS BV, MS VANE, MS R, MS KREBS, MS ULV, MS SV
Compatible temperature control : EVA MS-DIN PLUS, EVA MS-R PLUS, EVA LR-BV PLUS, RT-1 PLUS
Supply voltage : 90-240 VAC 50/60 Hz
PC connections : RS232 Port, USB and Ethernet
Printer connection : USB Host Port - Compatible PCL/5
What benefits are there for you? : The Portable RM 100 gives you one hour of measuring time. Save your measurement protocols directly on your viscometer. The Portable RM 100 lets you set measuring times for thixotropic products. You can connect a USB printer. External control thanks to the optional software.
Dimensions and weight : Head : Ø 90 mm; Box D60 x H260 x W120
Weight: 2 kg
What's included :
1 Integrated temperature probe.
1 Carrying case.
1 User manual.
1 Calibration and checking certificate.
1 Harness.
