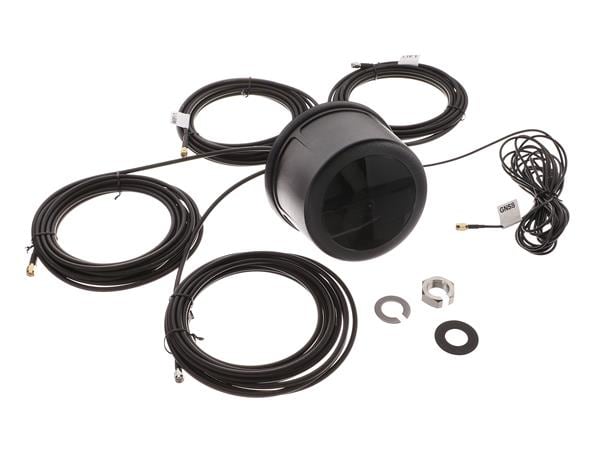

Laird External Antennas VHP69273B22J-518A MIMO 5-PORT 4G-WIFI-GNSS BK,GNSS

Gain: 4.1 dbi, 5.9 dBi, 6.2 dBi, 6.5 dBi

VSWR: 1.7:1, 1.6:1, 1.7:1, 1.4:1, 2:1

Style: Dome

Width: 87 mm

Length: 132 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 17 ft LMR195M x 4, 17 ft RG174

Application: FirstNet/Public Safety, Passenger Fleet, Commercial Vehicle Fleet, Rail Transit

Unit Weight: 1.2 kg

Cable Length: 5.18 m

Polarization: Vertical Linear

Power Rating: 50 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 6 Band

Center Frequency: 829 MHz, 2205 MHz, 2500 MHz, 5400 MHz, 1561.098 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.9 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male, RP-SMA Male

Protocol - GPS, GLONASS: BEIDOU, GNSS, GPS

Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
