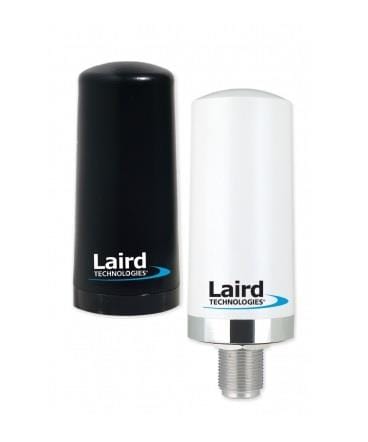

Laird External Antennas TRA6927M3PBN-001 Passive Antenna OMNI,Ph,PMT,698/1710 MHz

Gain: 0 dBi, 1.7 dBi, 2.9 dBi

VSWR: 2.5:1, 2.0:1, 2.0:1

Style: Straight

Length: 876 mm

Diameter: 368 mm

IP Rating: IP67

Impedance: 50 Ohms

Technology: Multiband

Application: FirstNet/Public Safety, Cellular, M2M, Utilities, Data Transport, Transportation, IBW

Unit Weight: 211.867 g

For Use With: 3G, 4G

Polarization: Vertical

Power Rating: 100 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 2 Band

Center Frequency: 829 MHz, 2.205 GHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 35 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM
