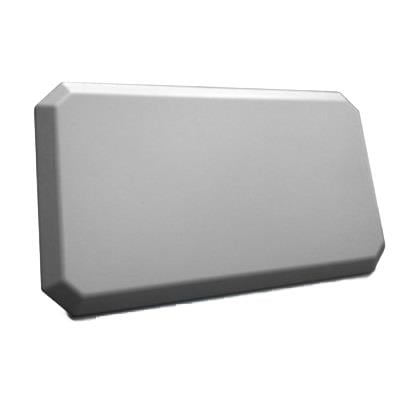

Laird External Antennas PDM24519-FNF MIMO Panel,ArtMnt,FIXED,N F

Gain: 8 dBi, 9 dBi

VSWR: 2:1

Style: Rectangular

Width: 17.8 cm

Height: 2.5 cm

Length: 30.5 cm

IP Rating: IP67

Impedance: 50 Ohms

Application: Airports, Hospitals, Bus Terminals, Train Stations, Musuems, Libraries, Retail Malls, Outdoor Networks

Unit Weight: 690 g

Power Rating: 10 W

Mounting Style: Bracket Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.525 GHz

Mechanical Style: Module

Maximum Frequency: 5.9 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
