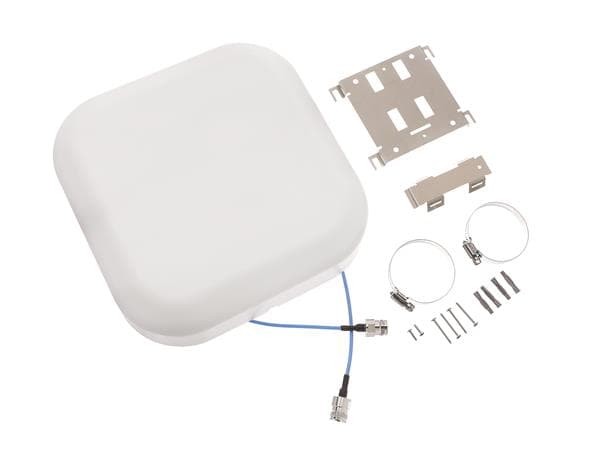

Laird External Antennas PAS69278P-30D43F Passive Antenna Panel,SLP,30CM,D43F, 698-2700MHZ,8dBI,DO

Gain: 9.2 dBi, 9.7 dBi, 10.4 dBi, 8.5 dBi, 9.1 dBi, 10.1 dBi, 10 dBi

VSWR: 2.0:1, 1.9:1, 1.7:1, 1.6:1, 1.5:1, 1.5:1, 1.6:1, 1.8:1

Style: Square

Width: 295 mm

Height: 82 mm

Length: 295 mm

IP Rating: IP55

Impedance: 50 Ohms

Application: Wideband Operation

Unit Weight: 2.09 kg

Power Rating: 50 W

Mounting Style: Bracket Mount

Number of Bands: 8 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2300 MHz, 2600 MHz

Mechanical Style: Module

Maximum Frequency: 2.6 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Antenna Connector Type: 4.3-10 Female

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, PCS, AWS, MDS
