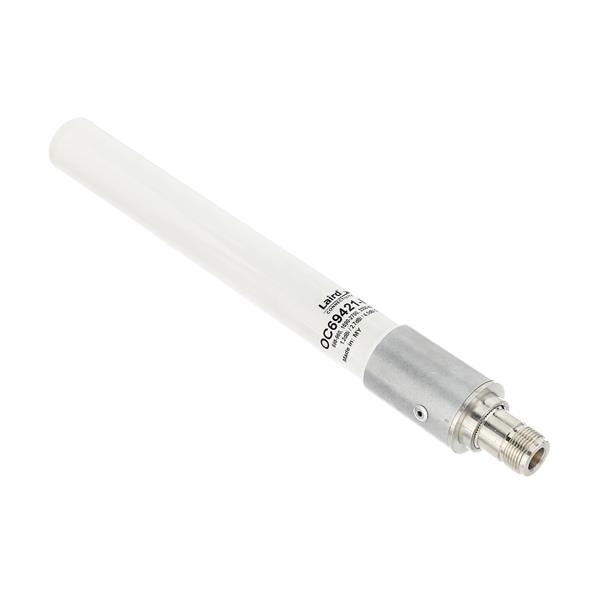

Laird External Antennas OC69421-FNF Passive Antenna OMNI,DBAND,FIXED,NF 698-4200MHz,1.5dBi

Gain: 1.5 dBi, 3.5 dBi, 5 dBi

VSWR: 2.5:1, 2.0:1, 2.5:1

Style: Radome

Length: 248 mm

Diameter: 24.5 mm

Impedance: 50 Ohms

Application: Wideband Operation

Unit Weight: 390 g

Power Rating: 20 W

Mounting Style: Bracket Mount

Number of Bands: 6 Band

Center Frequency: 829 MHz, 1850 MHz, 2045 MHz, 2300 MHz, 2595 MHz, 3750 MHz

Mechanical Style: Collinear

Maximum Frequency: 4.2 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G, Cellular (NBIoT, LTE), CBRS
