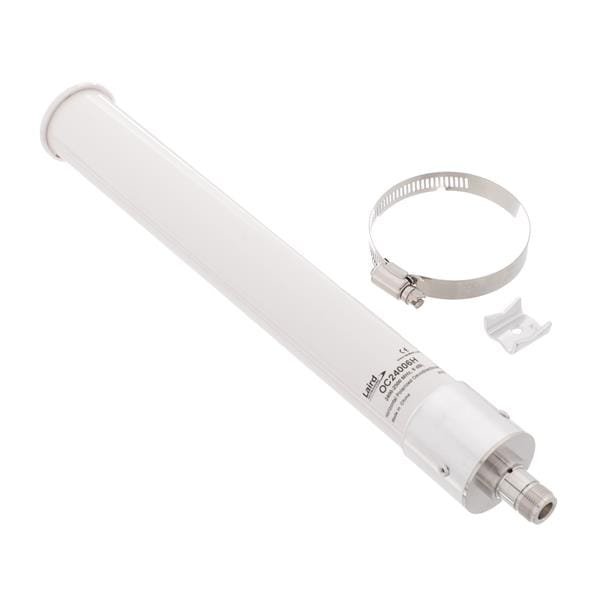

Laird External Antennas OC24006H-FNF Passive Antenna Omni,FixMnt,,NF

Gain: 6 dBi

VSWR: 2.0:1

Style: Radome

Length: 329 mm

Diameter: 45 mm

IP Rating: IP67

Impedance: 50 Ohms

Application: Direct to Radio

Unit Weight: 397 g

Power Rating: 10 W

Mounting Style: Bracket Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Collinear

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
