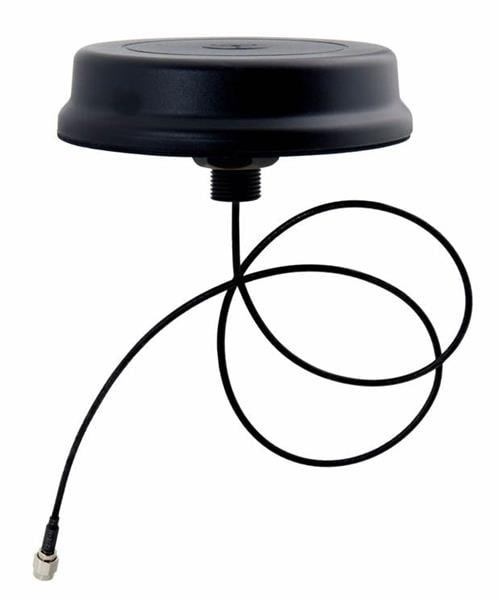

Laird External Antennas LPS69273NT-61SMAM Passive Antenna INFRA M2M,OMNI SISO

VSWR: 2.7:1, 2.9:1, 2.8:1, 2.1:1, 1.7:1, 1.7:1, 2.3:1, 2.3:1

Style: Dome

Length: 31 mm

Diameter: 127 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 610 mm RG316

Application: M2M, Communications

Unit Weight: 220 g

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 8 Band

Center Frequency: 752 MHz, 859 MHz, 920 MHz, 1795 MHz, 1920 MHz, 2040 MHz, 2400 MHz, 2600 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
