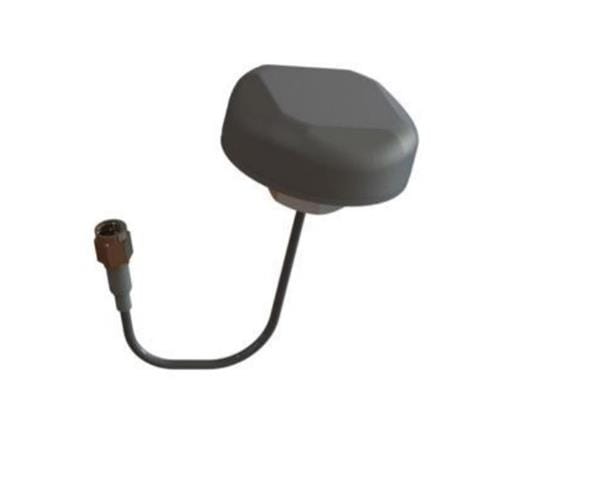

Laird External Antennas GNS1559MPF-100SMAM Active Antenna GPS-GNSS ANT P-MOUNT

Gain: 4.6 dBic, 2.6 dBic, 4.4 dBic

VSWR: 1.5, 1.9, 1.5

Style: Dome

Length: 14.9 mm

Diameter: 48.4 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 100 cm RG174

Application: Fleet, Logistics Management, General Automotive Aftermarket, Highway Construction, Land Surveying Management, Asset Visibility Tracking, Warehouse Management

Unit Weight: 120 g

Cable Length: 1 m

Polarization: RHCP

Mounting Style: Direct / Permanent Mount

Number of Bands: 3 Band

Center Frequency: 1.56108 GHz, 1.57542 GHz, 1.60197625 GHz

Mechanical Style: Module

Maximum Frequency: 1.605 GHz

Minimum Frequency: 1.559 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GPS

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 35 C
