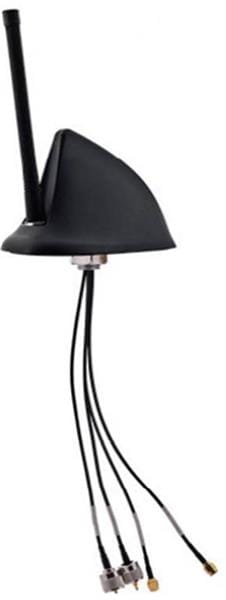

Laird External Antennas FHQ69273CD-518VC3 MIMO FIN-ANTENNA H-PROFIL E, 698-2700,UHF1 CO

Gain: 3.4 dBi, 5.5 dBi, 6.6 dBi, 6.2 dBi, 2 dBi

VSWR: 1.9:1, 1.5:1, 1.3:1, 1.3:1, 1.6:1

Style: Sharkfin

Width: 98 mm

Height: 70 mm

Length: 160 mm

Bandwidth: 6 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 5.18 M LMR100 x 4

Application: Public Safety, Transportation, Aftermarket Fleet, Land Mobile Radio

Unit Weight: 520 g

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 6 Band

Center Frequency: 829 MHz, 2205 MHz, 2450 MHz, 5387.5 MHz, 405 MHz, 1575.42 MHz

Mechanical Style: Module

Maximum Frequency: 5.875 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male, PL259

Protocol - GPS, GLONASS: GPS

Protocol - WiFi - 802.11: WLAN

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
