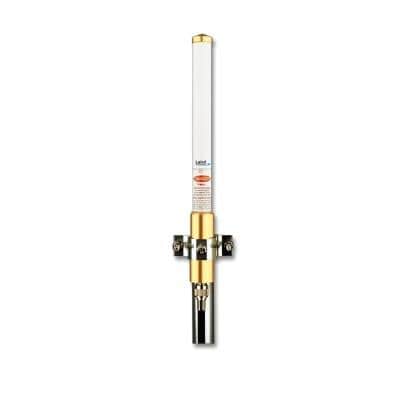

Laird External Antennas FG8063 Passive Antenna OMNI,FG,806-866 MHz, 200W

Gain: 3 dB

VSWR: 2:1

Style: Fiberglass

Length: 29 in

Diameter: 1.310 in

Impedance: 50 Ohms

Wavelength: 2:1

Application: Public Safety Agencies, Commercial Organization, Military

Unit Weight: 453.592 g

Polarization: Vertical

Power Rating: 200 W

Mounting Style: Bracket Mount

Frequency Range: 806 MHz to 866 MHz

Number of Bands: 1 Band

Center Frequency: 812.5 MHz

Mechanical Style: Collinear

Maximum Frequency: 866 MHz

Minimum Frequency: 806 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: N Female

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
