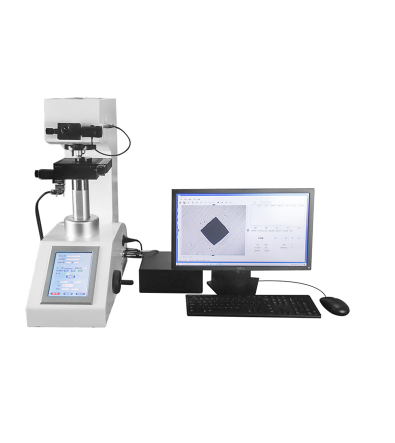

Hardness tester:
Test force: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Carried standard: GB/T4340，ASTM E92
Minimum test unit: 0.01µm
Conversion scales: HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Hardness measurement range: 8~2900HV
Loading method: Automatic （loading、dwell、unloading）
Turret: Automatic
Measurement eyepiece: 10X
Magnification of objectives: 10X(measurement)、40X(measurement)（20X optional）
Dwell time: 0~99s
Maximum height of specimen: 100mm
Distance from the center to the outer wall of the indenter: 110mm
Data output: LCD display
Data storage: Data stored as EXCEL in the U disk
Power supply: AC220V+5%，50-60Hz
Software
Camera: 1.3 million pixels
Motor: Stepping motor
Automatic sample station movement: The software can change the speed flexibly by moving up the x-y axis.Click any point in the interface to select the point automatically, set the starting position of the straight line and the randomly moving position, and control the arbitrary movement in 8 directions of the automatic x-y displacement platform carrier by selecting the mouse, and adjust the speed and reset automatically.
Size: 100 × 100mm
Max. Movement distance: 25*25mm in the X-Y direction
Min. Movement distance: 1mm
Movement speed: 1-10mm/sec，adjustable
Repeated displacement accuracy: Within 4um
Mode setting: The software system can control the automatic carrier platform for programming movement：
1）measurement mode（Random A）Use this mode to load and read an arbitrary point.
2)Horizontal (X-axis direction), vertical (Y-axis direction) load and read
3）Measurement mode（Line Set A）Use this mode to press and read and surface in an angular direction (zigzag movement, that is, broken line movement of the depth measurement of the hardened layer)
4）measurement （Line Set B） Use this mode for regular intervals of loading and reading.
5）Track coordinate movement and other mobile programming methods
Measurement process: Measure one by one after all loads, while loading and measuring at the same time
Indentation measurement method: Automatic /manual
Automatic measuring time: About 0.3sec/1 indentation
Hardness value correction: It can corrected according to the standard hardness or length scale
Data output: The test report can be customized according to user requirements. Through data processing software, the depth of hardened layer formed after continuous measurement of the sample can be displayed in tabular form. It can easily output various measurement data, hardness value table, hardened layer depth, maximum value, average value, minimum value, etc
