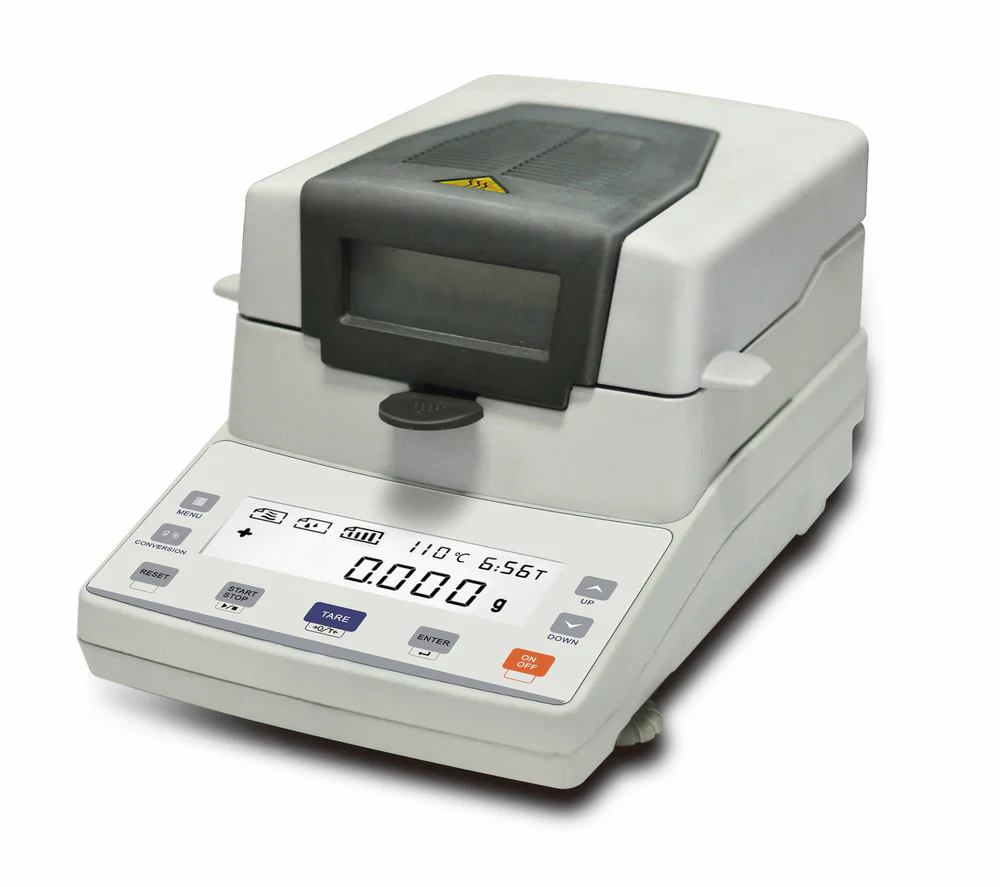

Labstac XY-105MW Halogen Moisture Analyzer (110g, 0.005g)

Capacity: 110 g

Readability: 0.005 g

Operating temperature: 5 °C – 35 °C

Display: LCD (white backlight with black font)

Calibration: External calibration

Interface: RS232 (standard) / USB (optional)

Pan size: Ø90 mm

Packing size: 490 × 350 × 360 mm

Gross weight: 7.5 kg

Heating source: Halogen lamp-1

Temperature sensor: PT100

Temperature range: 40 °C – 199 °C

Temperature step: 1 °C

Moisture range: 0.00 % – 100.00 %

Moisture readability: 0.10 %

Dry range: 100.00 % – 0.00 %

Dry readability: 0.10 %

Temperature setting: 40 °C – 199 °C (step 1 °C)

Time setting: 1 – 99 min (by 10 s)

Number of storage: 15

Heater: 220 V ±15 % 50 Hz / 110 V ±15 % 60 Hz / 400 W

Balance: Input 220 V 50 Hz / 110 V 60 Hz, Output 9 V
