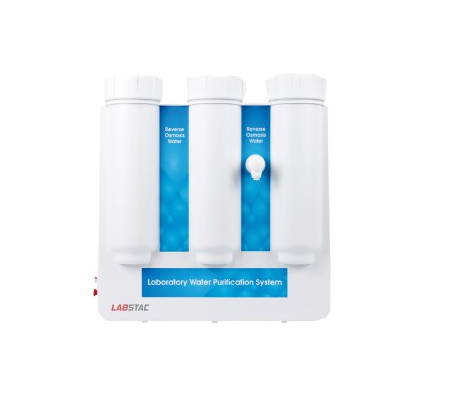

Labstac WO122 Basic RO Water System

Water Inlet: Tap water: TDS<200 ppm (Extra pretreatment filter is recommended, if TDS>200 ppm)

Temperature: 5-45°C

Pressure: 1.0-4.0 Kgf/cm²

Flow Procedure**: PF+AC+RO+AC

Ion rejection rate: 96%-99% (New RO membrane)

Organic rejection rate: >99% (when MW>200 Dalton)

Particles and bacteria rejection rate: >99%

Bacteria: <0.1 cfu/ml (with optional 0.45+0.1µm PES terminal filter)

Particles(>0.2µm): <1/ml (with optional 0.45+0.1 µm PES terminal filter)

Output(25°C)****: 30 L/hrs

Pure water outlet: RO water

Water Quality Monitor: Portable TDS/conductivity test pen

DimensionLxWxH: 410×220×420 mm

Weight: 20 kg

Standard configuration: Main body (Including 1 set of cartridges)+15 liters tank+ TDS pen +accessory bag

Power Consumption (W): 72 W

Power Supply: AC110-220 V, 50/60 Hz

Note: *The feed water quality will influence the pure water´s quality and cartridges´ life-span.

**PF:polypropylene spun fiber, AC:active carbon, RO:reverse osmosis.

***All the specifications are tested under the situation:feed water´s TDS=200ppm, 25°C, 50psi and 15% recovery rate.

Flow rate: 2.0 L/min (with pressure tank)
