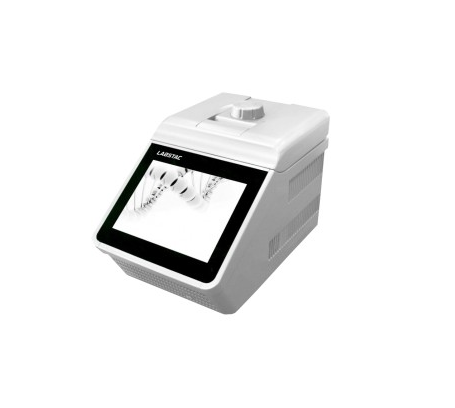

Labstac PT126 Thermal Cycler (96-PCR plate (full-skirted) 96x0.2 ml tubes 12x8-strip)

Sample Capacity: 96-PCR plate (full-skirted) 96x0.2 ml tubes 12x8-strip

Temperature Range: 4°C~99.9°C

Temperature Increment/Decrement: 0.1°C~9.9°C, Suitable for touchdown PCR

Temperature difference range of lines: 0.1°C~6.0°C

Max. ramp rate: 0.1°C~4°C

Max.Heating Ramp Rate: Upto 5°C/s

Max.Cooling Ramp Rate: Upto 4°C/s

Display Interface: 10.4’ , 262k-color LCD display and touch screen

Uniformity: ≤±0.2°C

Accuracy: ≤±0.1°C(55°C) ≤±0.15°C(≥95°C)≤±0.15°C(≥72°C)

Gradient Function: Yes

Hot Lid Temperature: 30°C~110°C

Height of hot Lid: Automatic Adjusted

Max.No.of Cycle: 99 Suitable for Nested PCR

Communication: RS232 / LAN and Bluetooth

Temp Control Mode: Block, tube

Memory Capacity: ≥250 typical programs onboard, unlimited with USB flash drive expansion

Timer Range: 0~9 min 59 sec, suitable for Long PCR

Auto pause/ power protection: Yes

Soak Function: Yes

Dimension (W×D×H): 316x457x309 mm

Power: 600 W

Weight: 14 kg

Power Supply: 100-240 V, 50-60 Hz

Optional Accessories:

Accessory Code Name Description

PX1010 Block A 96x0.2 ml,6 independent modules Noble gold-plated block

PX1011 Block B 96x0.2 ml,6 independent modules Nickle plated block
