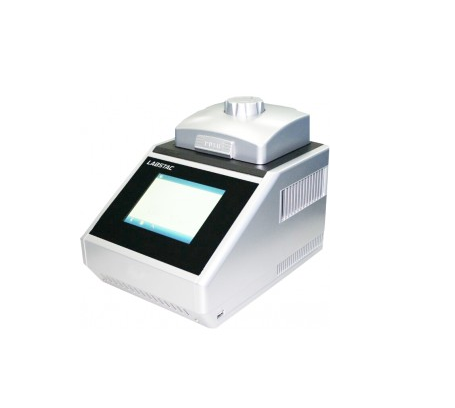

Labstac PT125 Thermal Cycler

Sample Capacity: 96-PCR plate (full-skirted) 96x0.2 ml tubes 12x8-strip

Temperature Range: 4°C~99.9°C

Temperature Increment/Decrement: 0~9.9°C, Suitable for touchdown PCR

Max. ramp rate: 0.1°C~4°C

Max.Heating Ramp Rate: Upto 4.0°C/s

Max.Cooling Ramp Rate: Upto 4.0°C/s

Display Interface: 6.25’ , 262, 144 color LCD display and touch screen

Uniformity: ≤±0.2°C

Accuracy: ±0.1°C(55°C) ≤±0.2°C(≥90°C)

Gradient Temp Range: 30~99°C

Hot Lid Temperature: RT +5°C-110°C(default 105°C)

Height of hot Lid: Automatic Adjusted

Max.No.of Cycle: 99 Suitable for Nested PCR

Temp Control Mode: Block, tube

Memory Capacity: ≥250 typical programs onboard, unlimited with USB flash drive expansion

Time Increment/Decrement: 0~9 min 59 sec, suitable for Long PCR

Auto pause/ power protection: Yes

Soak Function: Yes

Network: LAN

Dimension (W×D×H): 260x335x270 mm

Power: 600 W

Weight: 10 kg

Power Supply: 100-240 V, 50-60 Hz
