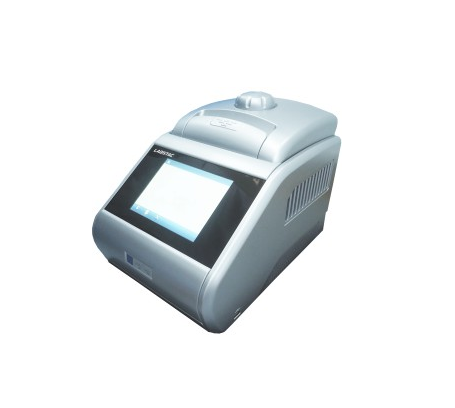

Labstac PT124 Thermal Cycler

Temperature Range: 4°C~99.9°C

Temperature Increment/Decrement: 0.1°C~9.9°C, Suitable for touchdown PCR

Max. ramp rate: 0°C~4°C

Display Interface: 6.5’, 262k-color LCD display and touch screen

Uniformity: ≤±0.2°C

Accuracy: ≤±0.1°C(55°C) ≤±0.2°C(≥90°C)

Thermal Gradient Accuracy: ≤±0.4°C( 35°C-99°C)

Hot Lid Temperature: 30°C~110°C

Height of hot Lid: Automatic Adjusted

Max.No.of Cycle: 99 Suitable for Nested PCR

Temp Control Mode: Block, tube

Memory Capacity: ≥250 typical programs onboard, unlimited with USB flash drive expansion

Time Increment/Decrement: 0~9 min 59 sec, suitable for Long PCR

Auto pause/ power protection: Yes

Soak Function: Yes

Network: LAN

Dimension (W×D×H): 160x140x120 mm

Power: 600 W

Weight: 10.5 kg

Power Supply: Ac 220 V, 50 Hz, 200 VA

Optional Accessories:

Accessory Code Name Description Heating speedof Ramping Cooling speed of Ramping Gradient Range Gradient Range of Temperature Difference

PX1023 Block A 48x0.2 ml, dual-block Upto 4°C / sec Upto 4°C / sec

PX1024 Block B 30x0.5 ml+48x0.2 ml Upto 2.8°C / sec Upto 2.8°C / sec

PX1025 Block C 384-microplate Upto 2.8°C / sec Upto 2.8°C / sec 30°C~99.9°C 1°C~30°C

PX1026 Block D 96x0.2 ml, Gradient Upto 4°C / sec Upto 4°C / sec 30°C~99.9°C 1°C~30°C

PX1027 Block E 4 x standard in situ plates Upto 1.8°C / sec Upto 1.8°C / sec
