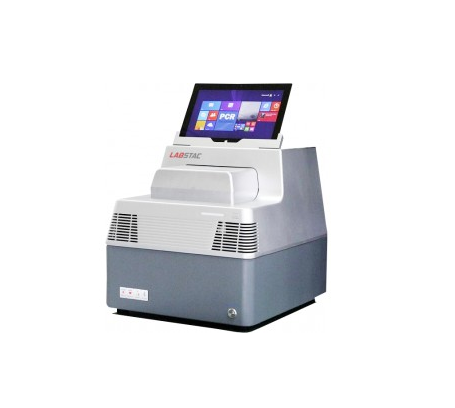

Labstac PR115 Real-time Thermal Cycler ((PCR plate 96 wells))

Sample Capacity: 96-Well PCR plate, 12x8-strip, 96x0.2 ml(Bottom Transparent)

Temperature Range: 4~105°C(Minimum Increment: 0.1°C) SOAK Low Temperature Conservation Function

Dynamics Range: 1~1010 Copies

Excitation Wavelength: 300-800 nm

Emission Wavelength: 500-800 nm

Fluorescence Detection Repeatability: 0.05

Detected Fluorescence: F1: FAM, SYBR Green I; F2: VIC, HEX, TET, JOE, Cy3, TAMRA; F3:ROX, TEXAS-RAD, F4: CY5, Quasar-670; F5: CY5.5, Quasar-705

Scan Mode: Entire plate or Designated Line

Scan Period: 5.5 s

Sample Volume Range: 5-100 µL

Heating/Cooling adjustable rate: 4.0°C / s(max)

Temperature Fluctuation: ≤±0.1°C

Uniformity: ≤±0.3°C

Accuracy: ≤±0.1°C

Gradient Temp Range: 1~36°C

Hot Lid Temperature: 30°C~110°C

Height of hot Lid: Automatic Adjustable (Default 105°C)

Max.No.of Cycle: 99

Max Segments: 20

Temp Control Mode: Block, tube Simulation Mode (Automatic Control Based on Sample Volume)

Memory Capacity: Memory: 2G Hard Disk: 32GB

PC Operation system: Microsoft: Windows 7 / Windows 8.1 Software: Excel2000 /2002 / 2003 / 2007 / 2012

Socket: USB Adapter, RS232C Adapter, Bluetooth Adapter

Dimension (W×D×H): 386x410x352 mm

Power: 600 W

Optional Accessories:

Accessory Code Name Description

PX1020 Block A 96x0.2 ml, 5 channels

PX1021 Block B 96x0.2 ml, 4 channels

PX1022 Block C 96x0.2 ml, 2 channels
