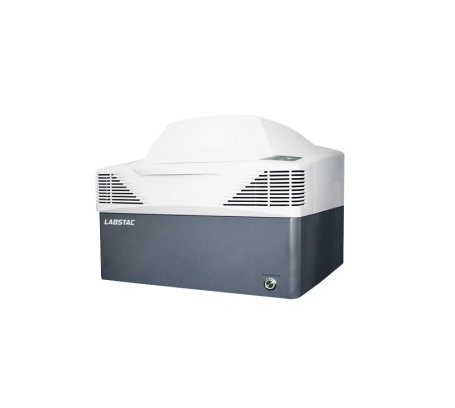

Labstac PR114 Real-time Thermal Cycler (96-Well PCR plate)

Sample Capacity: 96-Well PCR plate, 12x8-strip, 96x0.2 ml(Bottom Transparent)

Temperature Range: 4~105°C(Minimum Increment: 0.1°C) SOAK Low Temperature Conservation Function

Dynamics Range: 1~1010 Copies

Excitation Wavelength: 300-800 nm

Emission Wavelength: 500-800 nm

Fluorescence Detection Repeatability: 0.05

Scan Mode: Entire plate or Designated Line

Operation Mode: Continuous

Scan Period: 5.5 s (F1 / F2 96 Plate Scan)

Sample Volume Range: 5-100 µL

Heating/Cooling adjustable rate: 4.0°C / s

Temperature Fluctuation: ≤±0.1°C

Uniformity: ≤±0.3°C

Accuracy: ≤±0.1°C

Gradient Temp Range: 1~36°C

Hot Lid Temperature: 30°C~110°C

Height of hot Lid: Automatic Adjustable (Default 105°C)

Temp Control Mode: Block, tube Simulation Mode (Automatic Control Based on Sample Volume)

Memory Capacity: Memory: 2G Hard Disk: 32GB

PC Operation system: Microsoft: Windows 2000 / XP / vista / Windows 7 / Windows 8(Compatible with 64-bit operating system) Software: Excel2003 / 2007

Socket: USB Adapter, RS232C Adapter(optional), Bluetooth Adapter(optional)

Power: 600 W

Weight: 28 kg

Power Supply: 100-240 V, 50-60 Hz
