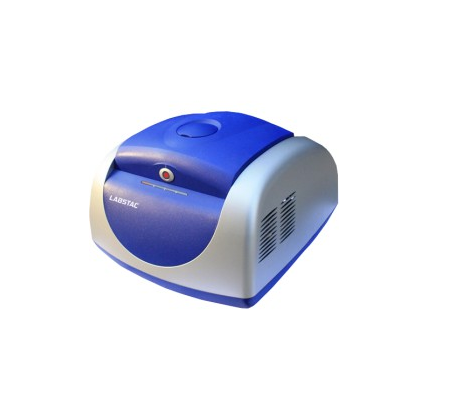

Labstac PR112 Real-time Thermal Cycler (48x0.2 ml)

Sample Capacity: 48x0.2 ml

Temperature Range: 4°C~99°C

Dynamics Range: 1~1010 Copies

Max Heating Rate: ≥4.0°C / sec

Max Cooling Rate: ≥4.0°C / sec

Sample Volume Range: 10-100µL

Uniformity: ≤±0.3°C

Accuracy: ≤±0.1°C

Gradient Temp Range: 1°C~24°C

Hot Lid Temperature: 80°C~110°C

PC Operation system: Windows 2000 / XP

Dimension (W×D×H): 450x520x320 mm

Power: 650 W

Weight: 25 kg

Power Supply: AC 110~220 V 50 / 60 Hz

Optional Accessories:

Accessory Code: PX1016

Name: Block A

Description: 48x0.2 ml (4 channels, auto hot-lid)

Excitation Wavelength(450-590 nm): Standard Channels: F1:470 nm, F2:523 nm, F3:543 nm, F4:571 nm

Emission Wavelength: Standard Channels: F1:525 nm, F2:564 nm, F3:584 nm, F4:612 nm

Detected Fluorescence: F1: FAM, SYBR Green I F2: HEX, VIC F3: TAMRA, JOE, Cy3 F4: TEXAS-RED, ROX

Accessory Code: PX1017

Name: Block B

Description: 48x0.2 ml (2 channels, manual hot-lid)

Excitation Wavelength(450-590 nm): F1:470 nm, F2:564 nm

Emission Wavelength: Standard Channels: F1: 525 nm, F2: 564 nm

Detected Fluorescence: F1: FAM, SYBR Green I F2: HEX, VIC
