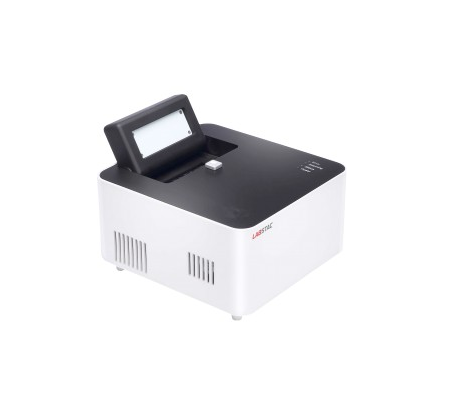

Labstac PM113 Real-Time Mini Thermal Cycler (8 wells)

Temperature Range: 4~100°C

Ambient Temperature: Operation Temp: 15-30°C; Storage Temp: 10-60°C

Ambient Humidity: Operation Humidity: 15-90% Relative Humidity; Storage Humidity: 5-95% Relative Humidity

Max. ramp rate: 3°C / s

Reaction volume: 10-150 µL

Block Formats: 8 Wells

Block Material: Peltier

High Resolution Melt: Supported Resolution to 0.5°C

Multiplexing: Detect up to 2 dyes simultaneously, 470 / 520 nm(SYBR / FAM) and 565 / 625 nm(ROX / Texas Red)

Thermal Uniformity: ±0.2°C

Thermal Accuracy: ±0.2°C

Sensitivity: 1 Copy

Light Source: High power LED

Detector: Photediode

PC Operation system: WIN2000; XP; WIN7; WIN8

Dimension (W×D×H): 190x205x98 mm

Weight: 2.1 kg

Power Supply: 12 V DC
