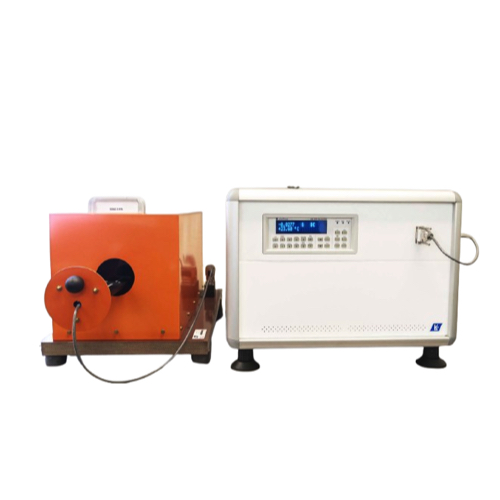

Laboratorio Elettrofisico CR/03 Coercimeter for Soft Magnetic Materials (0.5 A/m ÷ 144 kA/m)

General

Measurable Materials: Soft Magnetic Materials

Measurable Quantities: Hcj, Hsat

Measurable Shapes: Regular or irregular

Hcj Range: 0.5 A/m ÷ 144 kA/m

Hcj Resolution (Max): 6 mOe ÷ 1800 Oe

Sample Size (Max): 20 mm diameter × 110 mm length

Test Time: 30 seconds (typical)

Operating Temperature Range: 15°C ÷ 40°C

Frequency: DC

Accuracy

Hcj: ±1%

Hsat: ±1%

Transversal Field: ±0.5%

Main Electrical Cabinet

Power Supply: 200 Vac, 50-60 Hz, 16 A max absorption

Dimensions: 535 × 655 × 550 mm (21” × 26” × 22”)

Weight: 55 kg (121 lb)
