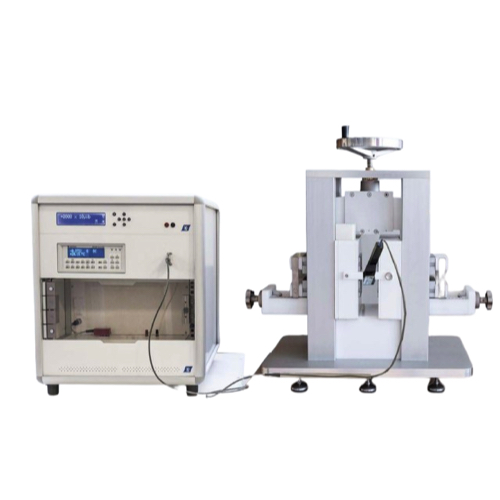

Laboratorio Elettrofisico AMH-DC-TB-S Permeameter (Bsat, Jsat, Hsat, Br, Hr, cycle area, µrel)

General

Measurable Materials: Soft Magnetic Materials (Hard Ferrite, Alnico with special poles)

Measurable Quantities: Bsat, Jsat, Hsat, Br, Hr, cycle area, µrel

Measurable Shapes: Rings, bars, strips

Sample Size Ring: No physical limits (size affects max H field achievable)

Typical Accuracy Ring: Hsat, Bsat: ±1%; Hc: ±2%; Br: ±2%; µ: ±3%

Test Time: 60-120 seconds (typical)

Operating Temperature Range: 15°C ÷ 40°C

Frequency: DC

Main Cabinet

Power Supply: 220 Vac, 50/60 Hz, 16 A max absorption

Units: 16 U

Dimensions: 535 × 855 × 806 mm

Weight: 90 kg (200 lb)

Power Supply LPS

Power Output: 200 W (8V/20 A or 20V/10 A)

Resolution: 1 mV / 1 mA

Current Accuracy (Reading): ±0.15% + 5 mA

Power Supply HPS

Power Output: 1500 W (60V/25 A)

Resolution: 1.2 mV / 1.25 mA

Current Accuracy (Reading): ±0.3% ± 75 mA
