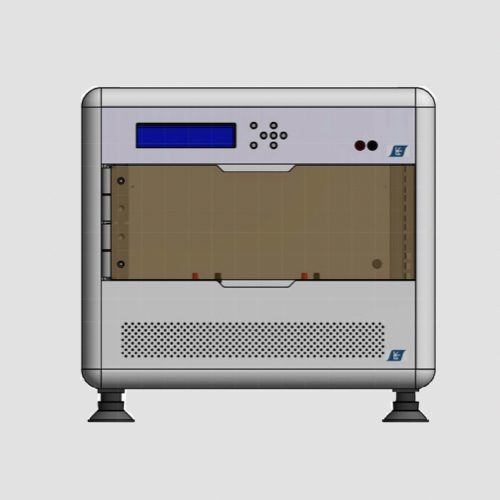

Laboratorio Elettrofisico AMH-1M-S Permeameter For Soft Magnetic Materials (DC ÷ 1 MHz; 450 VA peak)

General

Frequency Range: DC ÷ 1 MHz

Max Power: 450 VA peak

Measurable Materials: Soft Magnetic Materials

Measurable Quantities: Bsat, Jsat, Hsat, Br, Hc, cycle area, µrel, specific losses (P), losses separation

Measurable Shapes: Ring, strip (with optional Epstein frame)

Sample Size

Ring: No physical limitation (size affects the max H field)

Strip (Epstein): 30 mm × 300 mm (multiple of 4)

Typical Accuracy

Ring: Bsat, Br: ±1%; Hsat, Hc: ±1%, µr: ±2%; Losses: ±3%

Strip: Bsat, Br: ±1%; Hsat, Hc: ±1%, µr: ±2%; Losses: ±3%

Test Time: 60-180 seconds (typical)

Operating Temperature Range: 15°C ÷ 40°C

Acquisition

Unit: 16 bits

ADC Resolution: 10 up to 16 bit

Sampling Rate: 2.5 MS/s

Max Voltage Range: ±20 V

Size & Weight

Dimensions: L 543 x W 710 x H 514 mm - L 21” x W 28” x H 20”

Weight: 50 kg (110 lb)
