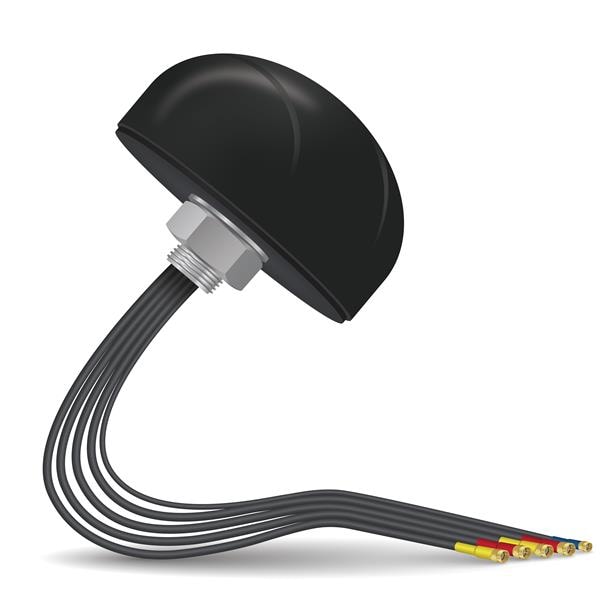

KYOCERA AVX X1005324-LWS5SX10A2 MIMO 5in1 LTE MIMO/GNSS/W iFi Dual Band 1m RG1

Gain: 3.6 dBi / 4.6 dBi, 6.2 dBi / 6.6 dBi

VSWR: 1.8:1 / 1.6:1, 1.8:1 / 1.8:1

Style: Dome

Length: 63.5 mm

Diameter: 141.98 mm

IP Rating: IPX7

Impedance: 50 Ohms

Cable Type: 1 M RG174, 1 M CFD200 x 2

Application: Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 8 Band

Center Frequency: 829 MHz, 1561 MHz, 1575 MHz, 1602 MHz, 2200 MHz, 2490 MHz, 5487 MHz

Mechanical Style: Module

Maximum Frequency: 5.825 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male, RP-SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
