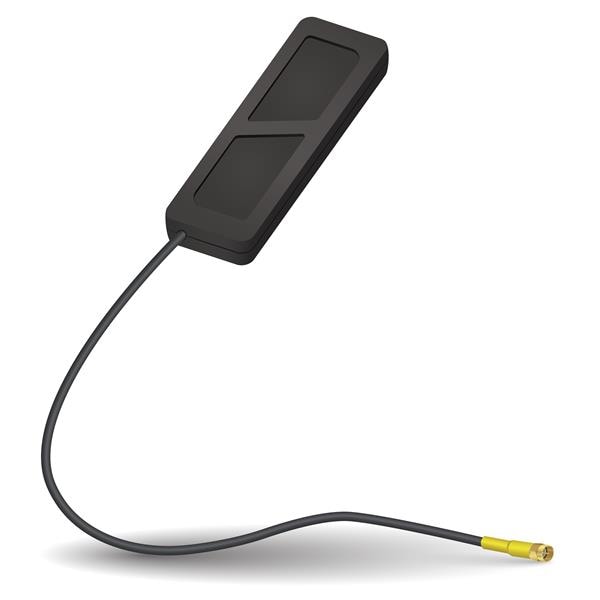

KYOCERA AVX X1005323-W3A1SA10A1 Passive Antenna WiFi Dual Band Exter nal 1m RG174 Cable S
Gain: 2.5 dBi, 3.3 dBi
VSWR: 2.0:1
Style: I-Bar
Width: 30.1 mm
Height: 6.7 mm
Length: 105.1 mm
IP Rating: IPX7
Impedance: 50 Ohms
Cable Type: 1 M RG174
Application: Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail
Mounting Style: Adhesive Mount
Number of Bands: 2 Band
Center Frequency: 2.4 GHz, 5 GHz
Mechanical Style: Module
Maximum Frequency: 5.825 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
