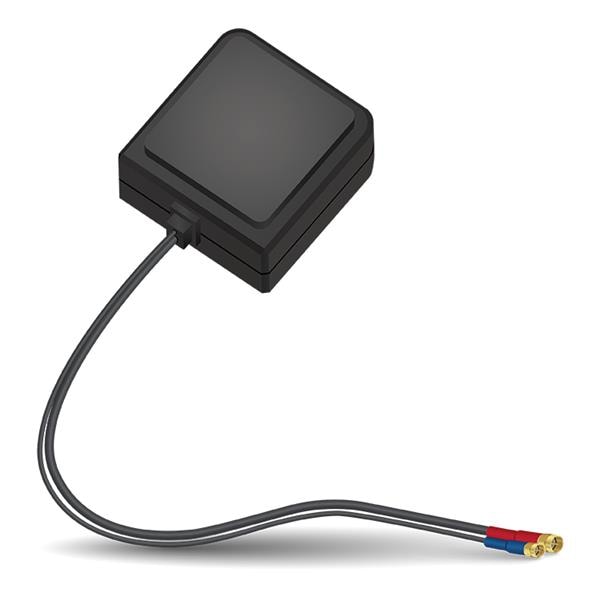

KYOCERA AVX X1005249-LGA2SA10A2 Active Antenna 2-in-1 GPS/Glonass/ TE Ext 1m RG174/CFD-

Gain: 3 dBi, 3.5 dBi, 3.7 dBi, 3.6 dBi, 3.6 dBi

VSWR: 2.0:1, 5.0:1, 3.8:1, 2.3:1

Style: Square

Width: 55 mm

Height: 20 mm

Length: 55 mm

IP Rating: IPX5

Impedance: 50 Ohms

Cable Type: 1 M RG174, 1 M CFD200

Application: Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail

Mounting Style: Adhesive Mount

Number of Bands: 5 Band

Center Frequency: 1561 MHz, 1575 MHz, 1602 MHz, 649 MHz, 1610 MHz, 2495 MHz

Mechanical Style: Module

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.575 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
