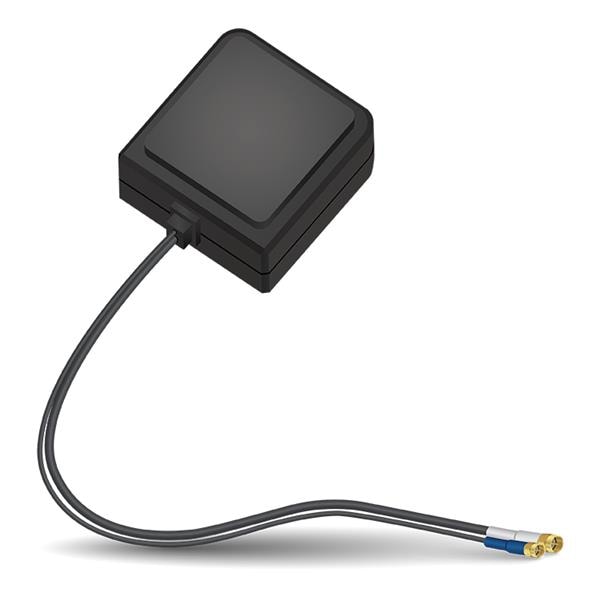

KYOCERA AVX X1005248-GDA2SA10A2 Active Antenna 2-in-1 GNSS/DSRC Ext 1m RG174 & CFD-200

Gain: 2 dBi, 3 dBi, 3.5 dBi

VSWR: 2.0:1

Style: Square

Width: 55 mm

Height: 20 mm

Length: 55 mm

IP Rating: IPX5

Impedance: 50 Ohms

Cable Type: 1 M RG174, 1 M CFD200

Application: Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail

Mounting Style: Adhesive Mount

Number of Bands: 4 Band

Center Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: Module

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.561 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: DSRC
