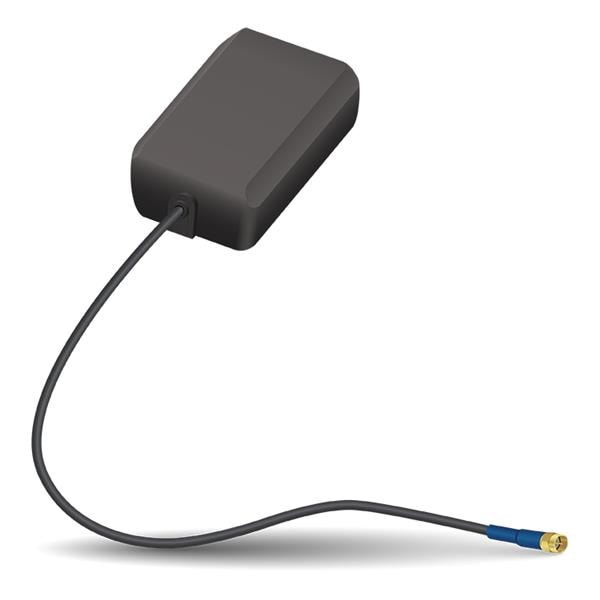

KYOCERA AVX X1005247-GNA1SA10A1 Active Antenna GNSS (Active) Extern al 1m RG174 Cable SM
Gain: 2 dBi, 4.1 dBi, 2 dBi
VSWR: 2.0:1
Style: Square
Width: 35.2 mm
Height: 14.5 mm
Length: 44 mm
IP Rating: IPX7
Impedance: 50 Ohms
Cable Type: 1 M RG174
Application: Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail
Polarization: RHCP
Mounting Style: Adhesive Mount
Number of Bands: 3 Band
Center Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz
Mechanical Style: Module
Maximum Frequency: 1.602 GHz
Minimum Frequency: 1.561 GHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: GLONASS, GPS
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
