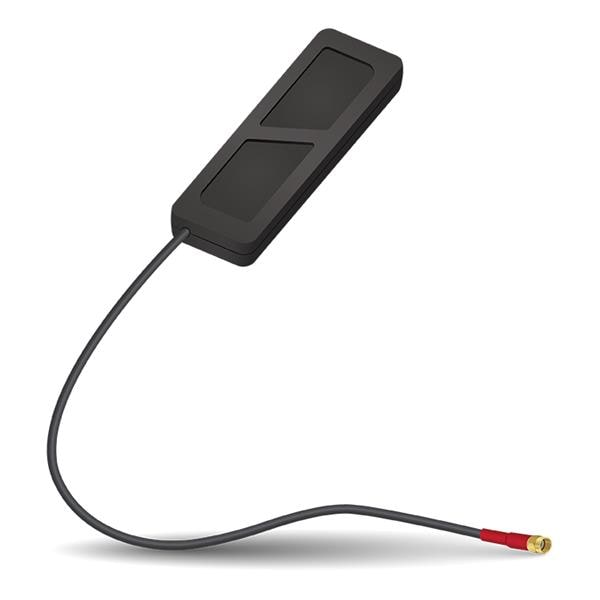

KYOCERA AVX X1005246-4GA1SA10A1 Passive Antenna LTE/Cellular Externa l 1m RG174 Cable SMA

Gain: 2.8 dBi, 3.1 dBi, 2.7 dBi

VSWR: 1.8:1, 1.5:1, 2.0:1

Style: I-Bar

Width: 30.1 mm

Height: 6.7 mm

Length: 105.1 mm

IP Rating: IPX7

Impedance: 50 Ohms

Cable Type: 1 M RG174

Application: Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Center Frequency: 1.61 GHz, 1.94 GHz, 3.55 GHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
