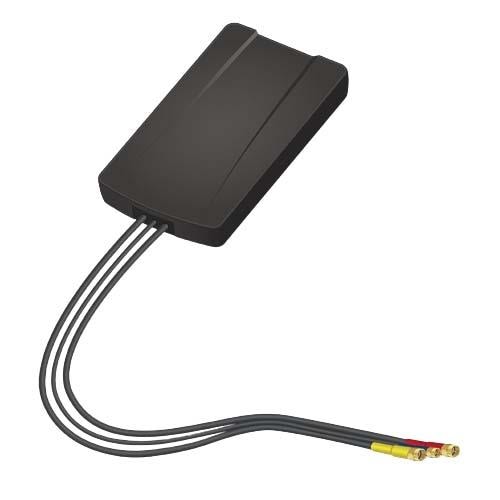

KYOCERA AVX X1005244-LWA3SX10A2 MIMO 3in1 GNSS/LTE/WiFi D ual Bd External 1m R

Gain: 4.5 dBi, 3.4 dBi

VSWR: 2.5:1, 2.0:1

Style: I-Bar

Width: 72.4 mm

Height: 12.7 mm

Length: 136.2 mm

IP Rating: IPX7

Impedance: 50 Ohms

Cable Type: 1 M RG174, 1 M CFD200 x 2

Application: Remote Monitoring, POS, Gateway, Telematics, Tracking, Healthcare, M2M, Smart Grid, Logistics, Energy, Retail

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 2.4 GHz, 5 GHz

Mechanical Style: Module

Maximum Frequency: 2.8 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male, RP-SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
