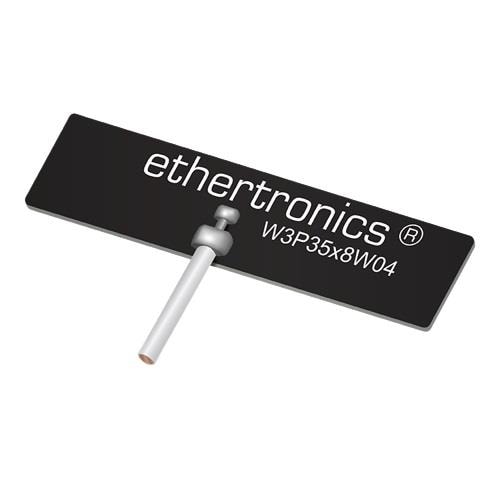

KYOCERA AVX W3P35X8W04-H100D3B0A PCB Antennas WiFi 6E & 7 PCB 100m m Cable MHF4L Connec

Gain: 2.3 dBi, 5 dBi, 2.5 dBi

Style: T-Bar Flex

Width: 8 mm

Height: 0.4 mm

Length: 35 mm

Bandwidth: 80 Hz, 70 Hz, 1.2 GHz

Impedance: 50 Ohms

Application: Agriculture, Smart Home, Healthcare, Automotive, Digital Signage

Cable Length: 100 mm

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Frequency Range: 2.4 GHz to 2.48 GHz, 5.15 GHz to 5.85 GHz, 5.925 GHz to 7.125 GHz

Number of Bands: 3 Band

Center Frequency: 2.44 GHz, 5.5 GHz, 6.525 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
