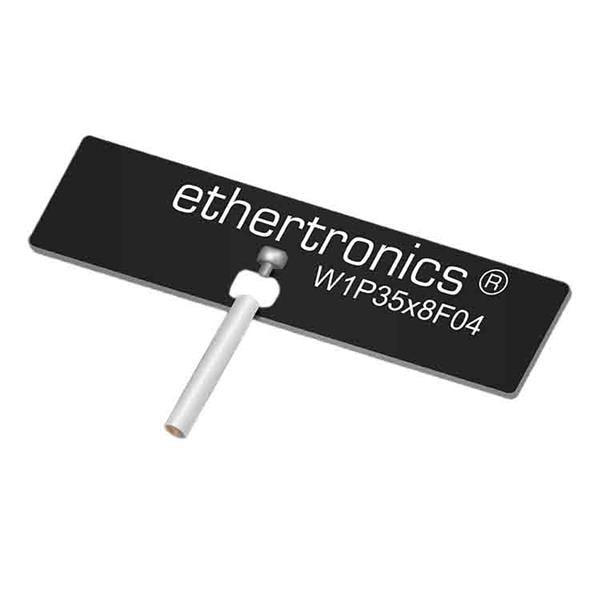

KYOCERA AVX W1P35X8W04-H100D3B0A Passive Antenna 2.4GHz/BT PCB 100mm Cable MHF4L Connecto

Gain: < 2.8 dBi

Style: PCB+Cable

Width: 8.5 mm

Height: 0.4 mm

Length: 35.2 mm

Diameter: 1.13 mm

Bandwidth: 80 MHz

Impedance: 50 Ohms

Cable Type: 100 mm Coax

Technology: Wi-Fi / BT / WLAN / BLE / ZIGBEE

Cable Length: 100 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Frequency Range: 2.4 GHz - 2.48 GHz

Number of Bands: 1 Band

Mechanical Style: PCB Trace

Maximum Frequency: 2.48 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: MHF4

Protocol - WiFi - 802.11: WiFi, WLAN - 802.11 b/g

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
