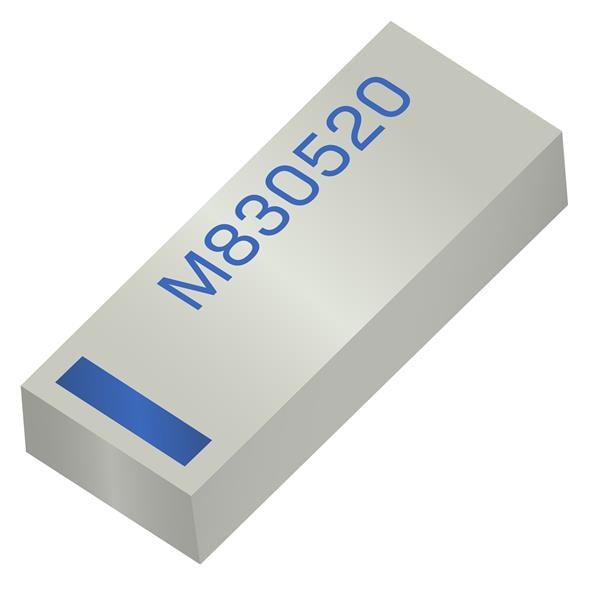

KYOCERA AVX M830520 Passive Antenna Dual Band WiFi Ceram ic

Gain: 1.1 dBi, 3.2 dBi

VSWR: 2.6:1, 3:1

Style: Ceramic

Width: 3 mm

Height: 1.3 mm

Length: 8 mm

Impedance: 50 Ohms

Technology: WiFi

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Unit Weight: 222.619 mg

For Use With: M830520-01

Polarization: Linear

Power Rating: 500 mW

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2.4 GHz, 5 GHz

Mechanical Style: Chip

Maximum Frequency: 5.8 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: 802.11 a/b/g/n/c, WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
