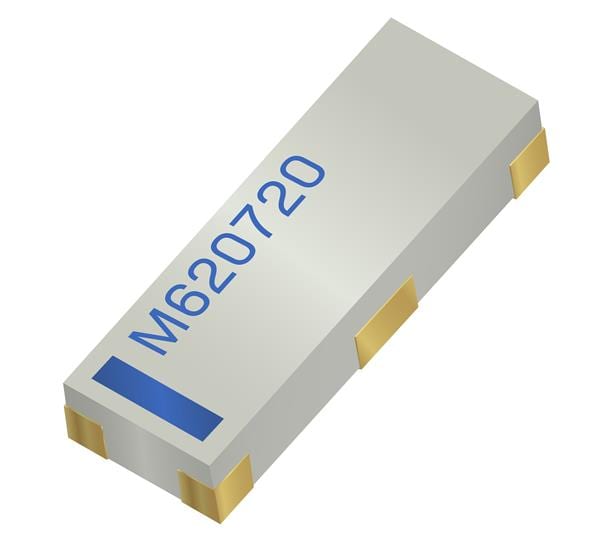

KYOCERA AVX M620720 Passive Antenna ISM 868 or 915 MHz C eramic

Gain: 2.56 dBi

VSWR: 2.6:1

Style: Ceramic

Width: 2 mm

Height: 1.08 mm

Length: 6 mm

Impedance: 50 Ohms

Technology: ISM

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Unit Weight: 403 mg

For Use With: M620720-01

Polarization: Linear

Power Rating: 500 mW

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 868 MHz, 915 MHz

Mechanical Style: Chip

Maximum Frequency: 928 MHz

Minimum Frequency: 863 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM
