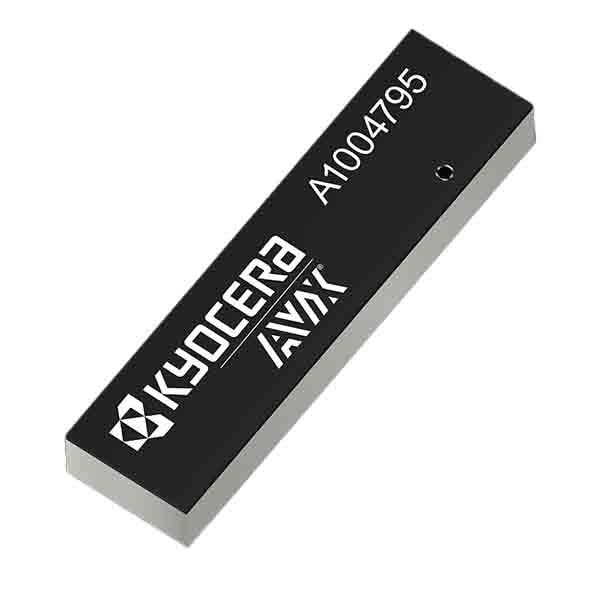

KYOCERA AVX A1004795 PCB Antennas Automotive Broadband 5G/LTE/LPWA PCB

Gain: 1.6 dBi, 3.1 dBi, 1.7 dBi

VSWR: 2.5:1, 3.0:1

Style: Chip

Width: 9 mm

Height: 3.3 mm

Length: 36 mm

Bandwidth: 98 MHz, 262 MHz, 690 MHz, 200 MHz

Frequency: 315 MHz, 400 MHz, 433 MHz, 450 MHz

Impedance: 50 Ohms

Application: Medical, Wearables, Smart Metering, M2M, IoT, Firstnet, Automotive, Healthcare, POS, Tracking

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Frequency Range: 315 MHz to 450 MHz, 600 MHz to 698 MHz, 1.71 GHz to 2.4 GHz, 2.5 GHz to 2.7 GHz

Number of Bands: 5 Band

Center Frequency: 315 MHz, 400 MHz, 433 MHz, 450 MHz, 649 MHz, 829 MHz, 2055 MHz, 2600 MHz

Mechanical Style: Rectangular

Maximum Frequency: 2.7 GHz

Minimum Frequency: 315 MHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: LoRA, LPWA, RPMA, SigFox

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 50 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), Cat-M
