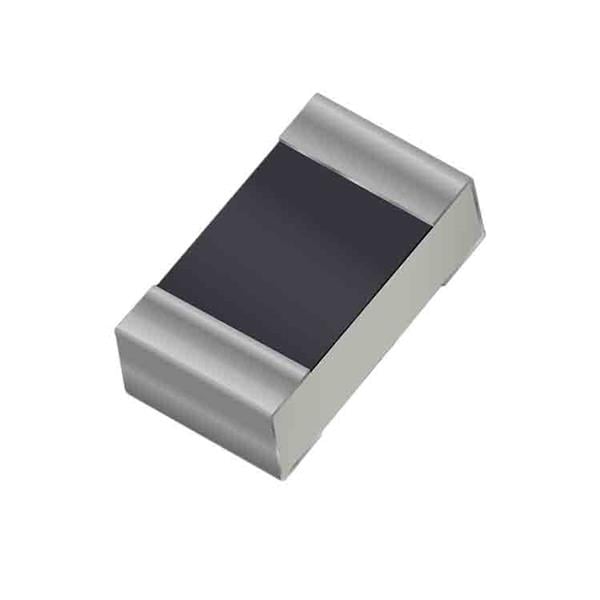

KYOCERA AVX A1001312 PCB Antennas Automotive WiFi/BT o r UWB Ceramic Chip

Gain: 1.88 dBi

VSWR: 1.8:1

Style: Chip

Width: 1.2 mm

Height: 0.55 mm

Length: 2 mm

Bandwidth: 85 MHz, 2.5 GHz

Impedance: 50 Ohms

Application: Wi-Fi Applications, Agriculture, Automotive, Healthcare, UWB

Polarization: Linear

Power Rating: 500 mW

Mounting Style: PCB Mount

Electrical Type: Chip

Frequency Range: 2.4 GHz to 2.485 GHz, 6 GHz to 8.5 GHz

Number of Bands: 1 Band

Center Frequency: 2.443 GHz, 7.25 GHz

Mechanical Style: Chip

Maximum Frequency: 8.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: UWB

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 50 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
