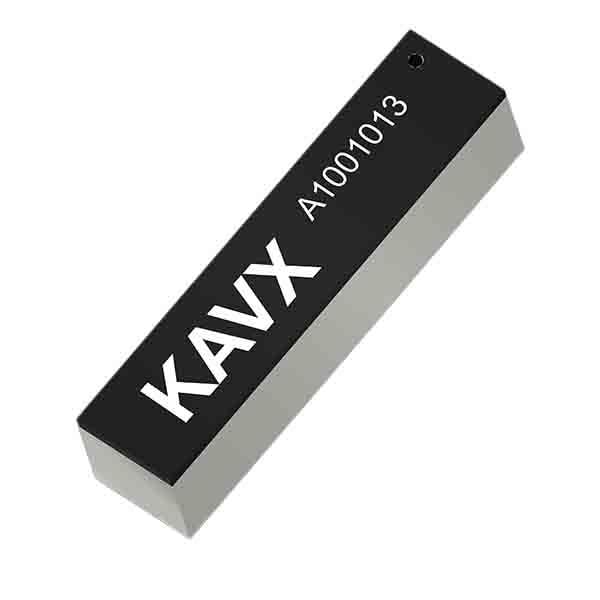

KYOCERA AVX A1001013 PCB Antennas Automotive On/Off Gr ound WiFi/BT PCB

Gain: 2.6 dBi, 0.7 dBi

VSWR: 1.5:1, 1.8:1

Style: Chip

Width: 3.2 mm

Height: 3.3 mm

Length: 15 mm

Bandwidth: 85 MHz

Impedance: 50 Ohms

Application: Automotive, Medical, Agriculture, Industrial, Wi-Fi

Polarization: Linear

Power Rating: 500 mW

Mounting Style: PCB Mount

Electrical Type: Embedded

Frequency Range: 2.4 GHz to 2.485 GHz

Number of Bands: 1 Band

Center Frequency: 2.443 GHz

Mechanical Style: Rectangular

Maximum Frequency: 2.485 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 50 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
