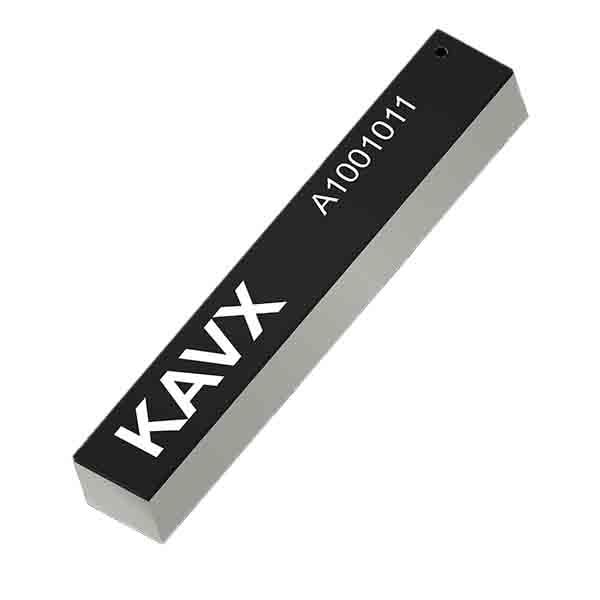

KYOCERA AVX A1001011 PCB Antennas Automotive On/Off Gr d GNSS (GPS/Glonass/

Gain: 0.96, - 0.26 dBi, 0.87, - 0.22 dBi, 0.96, - 0.18 dBi, 1, - 0.35 dBi

VSWR: 1.5:1, 2.5:1

Style: Chip

Width: 3.2 mm

Height: 3.3 mm

Length: 22 mm

Bandwidth: 4 MHz, 32 MHz, 17 Hz, 60 MHz

Impedance: 50 Ohms

Application: Tracking, Smart Home, Agriculture, Automotive, Healthcare, Digital Signage, Wearables, Industrial Devices

Mounting Style: PCB Mount

Electrical Type: Embedded

Frequency Range: 1.559 GHz to 1.563 GHz, 1.575 GHz, 1.559 GHz to 1.591 GHz, 1.593 GHz to 1.61 GHz, 868 MHz to 928 MHz

Number of Bands: 5 Band

Center Frequency: 1.561 GHz, 1.575 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: Rectangular

Maximum Frequency: 1.61 GHz

Minimum Frequency: 868 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 50 C
