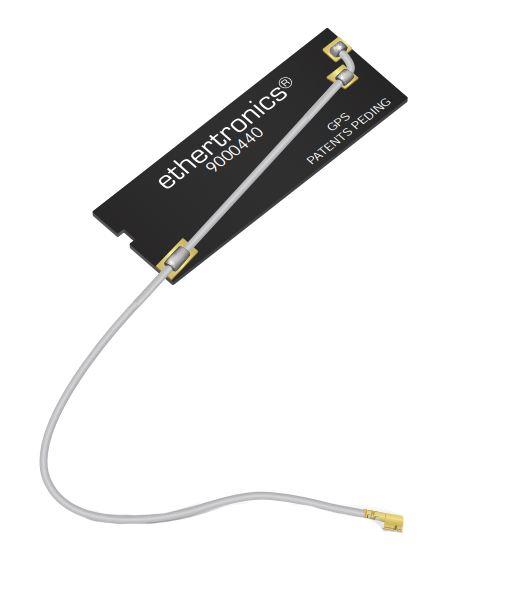

KYOCERA AVX 9000440 Passive Antenna GNSS(GPS/Glonass/BeiDou/Galileo) FPC 150mm Cable MHF

Gain: 2.4 dB, 2.5 dB

VSWR: 2.3:1

Style: I-Bar Flex

Length: 41 mm

Diameter: 15.5 mm

Impedance: 50 Ohms

Cable Type: 150 mm Coax

Application: Embedded Design, POS, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Unit Weight: 37 g

Cable Length: 150 mm

For Use With: Beidou, Galileo, GLONASS, GPS

Polarization: Linear

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 4 Band

Center Frequency: 1.575 GHz, 1.61 GHz, 1.6015 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.559 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
