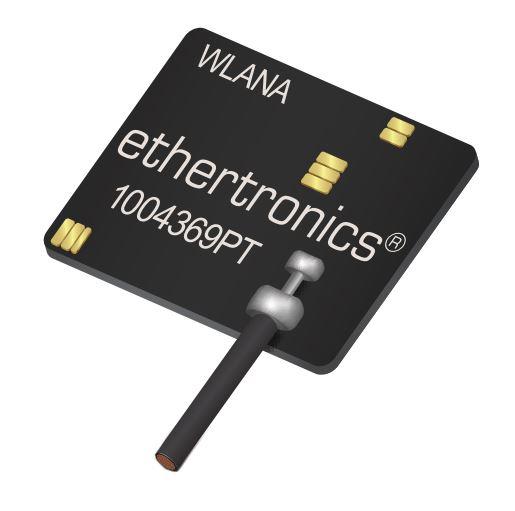

KYOCERA AVX 1004369PT-AA10L0135 Passive Antenna Assembly WLANAPT 135

Gain: 3.7 dBi

VSWR: 2.0:1

Style: T-Panel Flex

Width: 12.8 mm

Height: 0.4 mm

Length: 18 mm

Impedance: 50 Ohms

Cable Type: 140 mm RF1.37

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 5.4875 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.825 GHz

Minimum Frequency: 5.15 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
