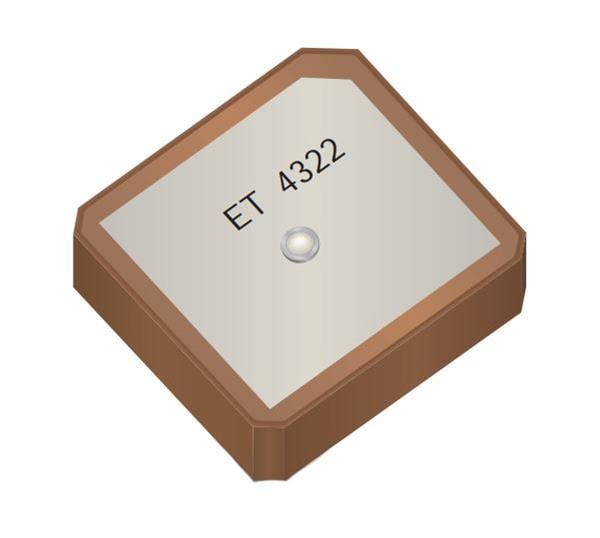

KYOCERA AVX 1004322 Passive Antenna GNSS (GPS/Glonass/BeiDou/Galileo) 18x18x4.7mm Ceramic Patch

Gain: 3.89 dBi, 3.12 dBi, 4.06 dBi, 3.92 dBi

VSWR: 1:3.5, 1:2.8, 1:3.8, 1:2.2

Style: Ceramic

Width: 18 mm

Height: 4.7 mm

Length: 18 mm

Impedance: 50 Ohms

Application: Embedded Design, POS, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Mounting Style: PCB Mount

Number of Bands: 3 Band

Center Frequency: 1.575 GHz, 1.61 GHz, 1.6015 GHz

Mechanical Style: Patch

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.559 GHz

Termination Style: Pin

Moisture Sensitive: Yes

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS
