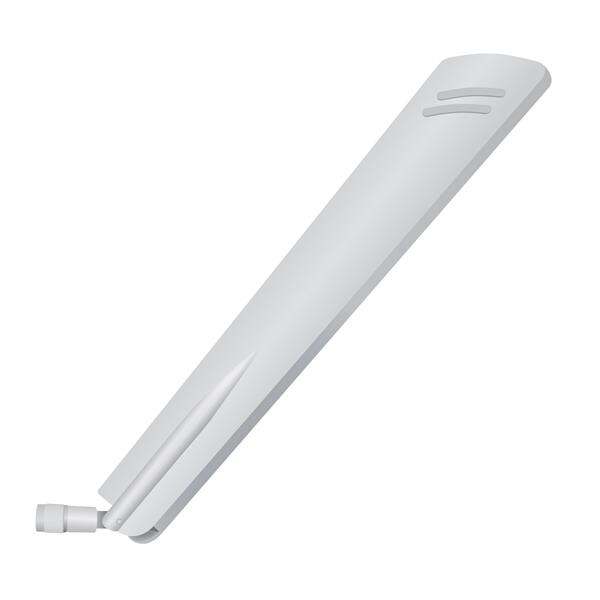

KYOCERA AVX 1004112-A001 Passive Antenna LTE/cellular Externa l Blade White SMA Co

Gain: 1.18 dBi, 4.5 dBi, 4 dBi

VSWR: 2.5:1

Style: Blade Tilt / Swivel

Width: 27.2 mm

Height: 13.8 mm

Length: 218.3 mm

Impedance: 50 Ohms

Technology: LTE, Cellular

Application: Medical Applications, Home Automation, Smart Metering, MWM, Firstnet, Automotive, Healthcare, POS, Tracking

Polarization: Linear

Power Rating: 5 W

Mounting Style: Connector

Number of Bands: 3 Band

Center Frequency: 825 MHz, 1.955 GHz, 2.6 GHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 690 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiFi, WLAN, LPWA, RPMA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), Cat-M
