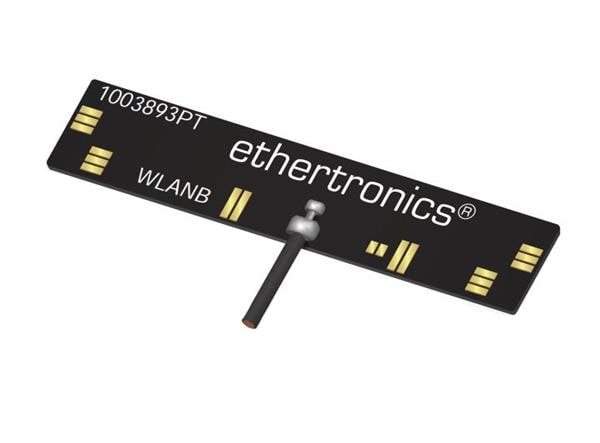

KYOCERA AVX 1003893PT-AA10L0100 Passive Antenna Tunable 2.4GHz/BT PC B 100mm Cable MHF Co

Gain: 3.3 dBi

VSWR: 1.5:1

Style: T-Bar Flex

Width: 8 mm

Height: 0.12 mm

Length: 40 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: Access Point, Cellular, Embedded Design, Gateway, Handheld, Healthcare, Headsets, Industrial Devices, M2M, OBD-II, Smart Grid, Tablets, Telematics, Tracking

Polarization: Linear

Power Rating: 500 mW

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 2.4 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.485 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
