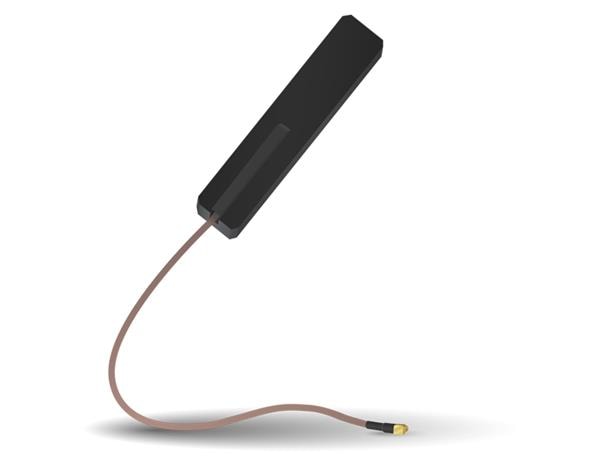

KYOCERA AVX 1003657 Passive Antenna Balanced LTE/Cell Ex ternal 218mm RG178 C

Gain: 1 dBi, 1.6 dBi, 3.2 dBi, 3.4 dBi

VSWR: 2.5:1, 2:1, 2:1, 2:1

Style: I-Bar

Width: 22 mm

Height: 4.2 mm

Length: 104 mm

Impedance: 50 Ohms

Cable Type: 218 mm RG178

Technology: LTE, Cellular

Application: Medical Applications, Home Automation, Smart Metering, MWM, Firstnet, Automotive, Healthcare, POS, Tracking

Cable Length: 220 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 4 Band

Center Frequency: 710 MHz, 766.5 MHz, 1732 .5 MHz, 2132.5 Mhz

Mechanical Style: Module

Maximum Frequency: 2.155 GHz

Minimum Frequency: 704 MHz

Termination Style: Connector

Antenna Connector Type: MMCX Male

Protocol - WiFi - 802.11: LoRa, SigFox, LPWA, RPMA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), Cat-M
