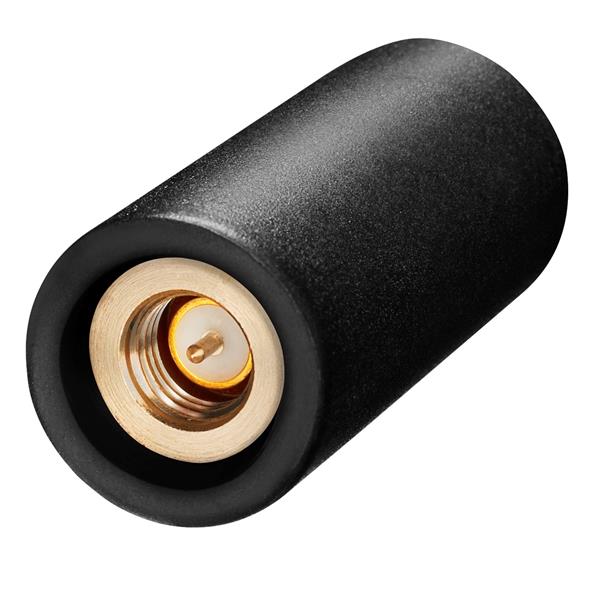

KYOCERA AVX 1002857 Passive Antenna External GPS GLONASS GNSS

Gain: - 3 dBi

VSWR: 2:1

Style: Stubby

Length: 34.93 mm

Diameter: 15 mm

IP Rating: IP68

Impedance: 50 Ohms

Technology: GPS

Application: Mobile Devices, Tracking, Wireless Monitoring, Medical/Healthcare Applications, Mission Critical Applications, Commercial/Communication, Radar, Industrial, Automotive First Responders

Unit Weight: 14.264 g

Polarization: RHCP

Power Rating: 500 mW

Mounting Style: PCB Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 1.575 GHz

Mechanical Style: Helical

Maximum Frequency: 1.575 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
