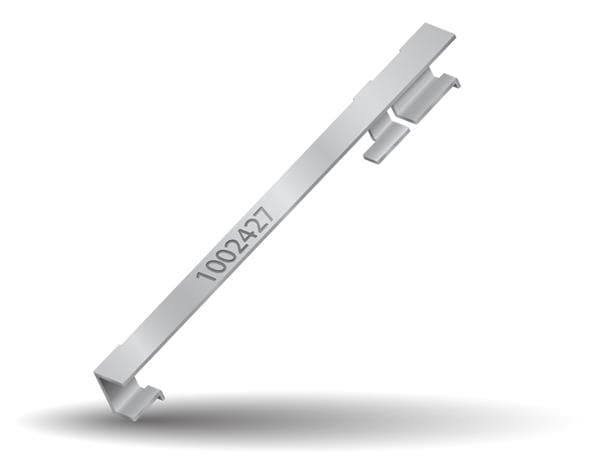

KYOCERA AVX 1002427 Passive Antenna Stamped Metal GPS or ISM/BT or ISM

Gain: 1 dBi, 3 dBi, 3.4 dBi, 1.8 dBi

VSWR: 2.0:1

Style: Metal

Width: 2.28 mm

Height: 3.9 mm

Length: 31.2 mm

Impedance: 50 Ohms

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Unit Weight: 1 g

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 4 Band

Center Frequency: 891.5 MHz, 915 MHz, 2.45 GHz, 1.61 GHz

Mechanical Style: Stamped

Maximum Frequency: 1.606 GHz

Minimum Frequency: 868 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM

Protocol - GPS, GLONASS: GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
