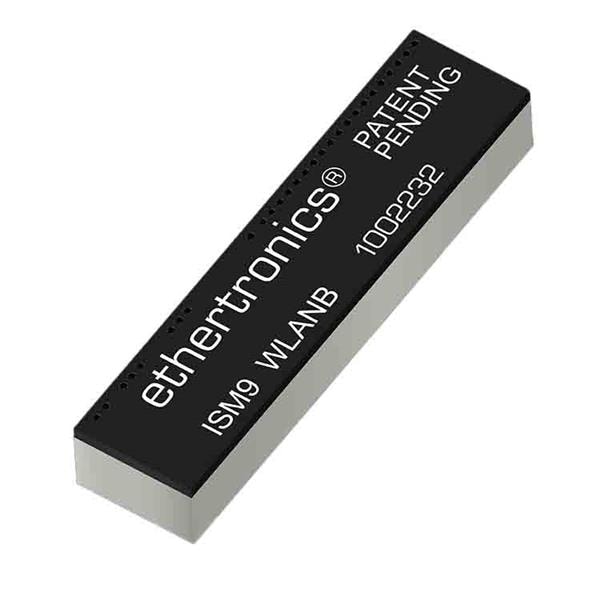

KYOCERA AVX 1002232 Passive Antenna Dual Band LoRa/ISM 8 68/915 & WiFi/BT PCB

Gain: 0.51 dBi, 0.21 dBi, 1.5 dBi

VSWR: 2.0:1

Style: Ceramic

Width: 9 mm

Height: 3.2 mm

Length: 35 mm

Impedance: 50 Ohms

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Power Rating: 2 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 866.5 MHz, 915 MHz, 2.45 GHz

Mechanical Style: Chip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 863 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
